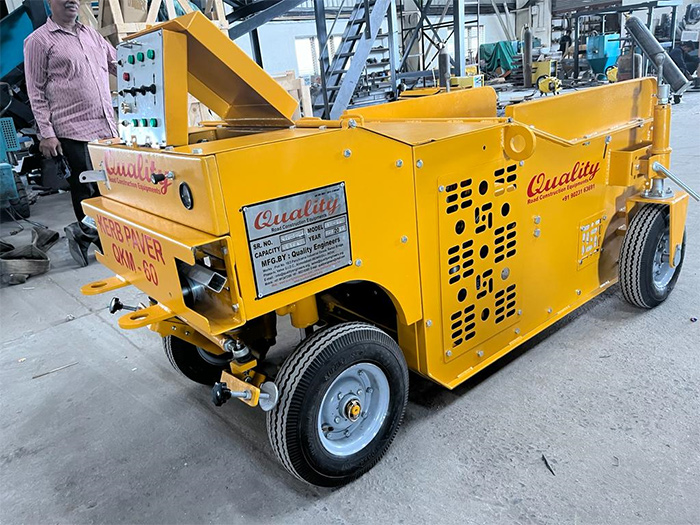

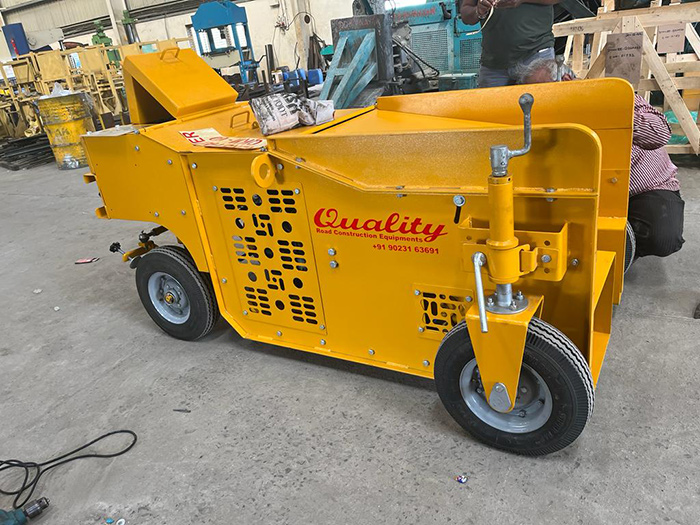

Model	“QUALITY” QEKLM 450
Engine Make & Model	10 HP Diesel Engine GREAVES 1510
Steering Control	Auto/Manual
Height Control Auto
Hydraulic Pump Make & Type	Variable Displacement Axial Piston Type
Drives Main drive	5/8" Duplex Chain / Hydraulic V - Belt
Solenoid Valves	12 V DC
Compaction Method By Ramming	Mechanism
Minimum Radius of Kerb	4.8 MTR
Laying Capacity (W X H)	600 x 475 mm Max. & 175 x 475 min.
Laying Speed	60 MTR/Hr
Stroke/Min	25 Max
Size of Tyres	4.00 X 8 - 6 Ply - 4 Nos.
Petrol Tank Capacity	5 liters
Hydraulic Tank Capacity	6.5 Liters
Slump Range	Zero Slump
Fuel (Diesel) Consumption	1.6 Liters/Hour
Accuracy	+/- 3 to 5 MM
Length (Without Mould)	1945 MM
Length With Mould	2715 MM
Height	930 MM.
Width	1155 MM
Weight with Mould	915 KG
Material feeding (Concrete	Transit Mixer or a Flat Bed Truck (Tractor Trolley)
Charge Hopper Capacity	0.21 Cubic Meter.
